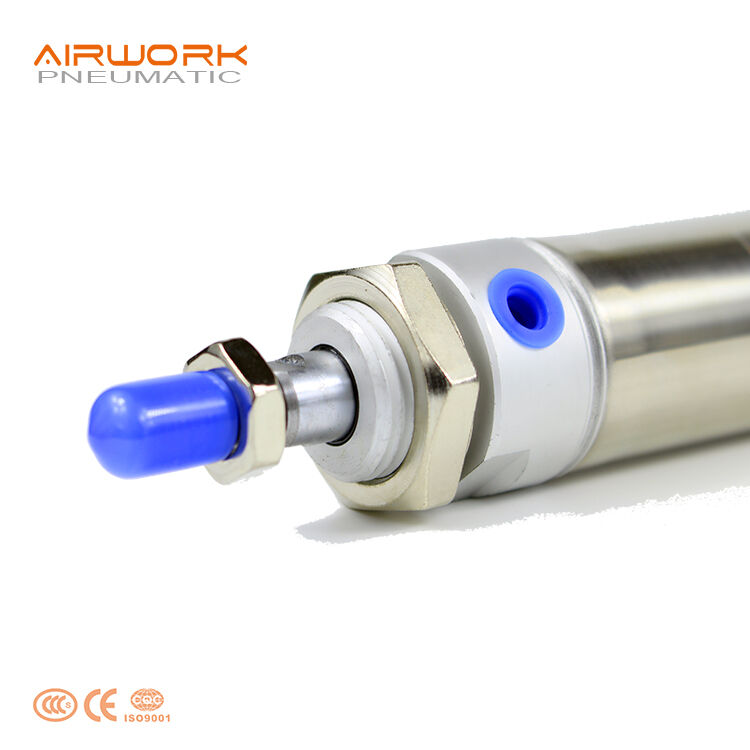

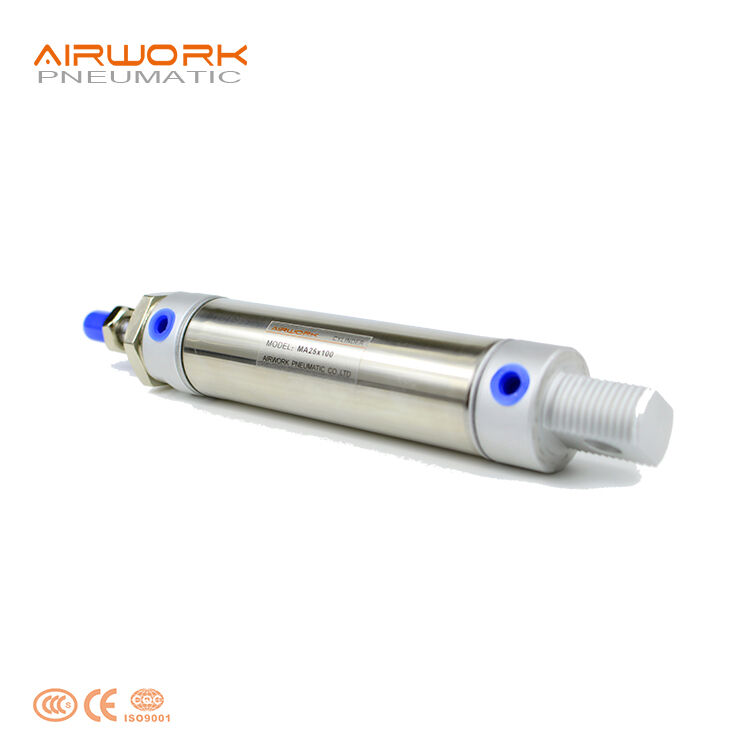

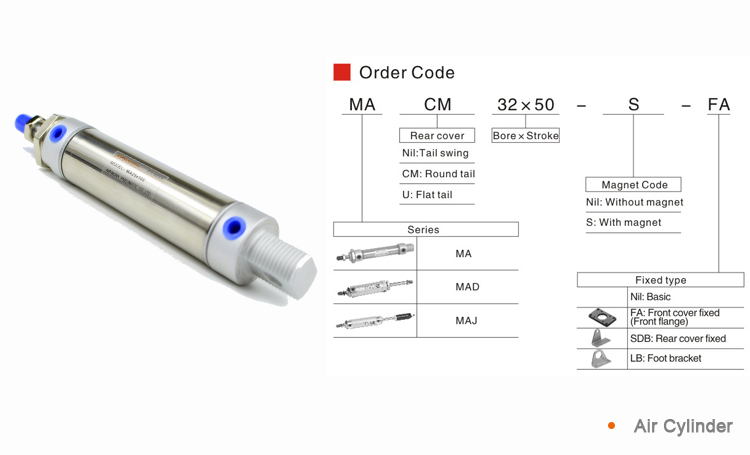

MA Series Mini Cylinder
MA mini cylinders are compact, stainless steel pneumatic linear actuators widely used in space-constrained automation, precision equipment, and light-load handling scenarios, balancing reliability, corrosion resistance, and easy integration. Stainless steel cylinder tube (16–63 mm bore) for strength and corrosion resistance; front/rear covers use riveted roll-clad connection for robust assembly.
- Overview
- Recommended Products
Product Feature
1.Standard cylinder manufactured by our enterprise.
2.Piston adopts heterogeneous two-way seal structure. It has compact size and has thefunction of grease reservation.
3.Front cover has fixed bumper which can reduce the impact of direction change of thecylinder.
4.There are several modes of back cover, which makes the installation of cylinder moreconvenient.
5.Front and back cover and stainless steel block adopt riveted rolling packed structure to forma reliable connection.
6.The cylinder body has stainless steel pipes with high precision to produce high strength andcorrosion resistance.
7.There are cylinders and mounting accessories with several specifications for your choice.8.All cylinders of this series have magnet.

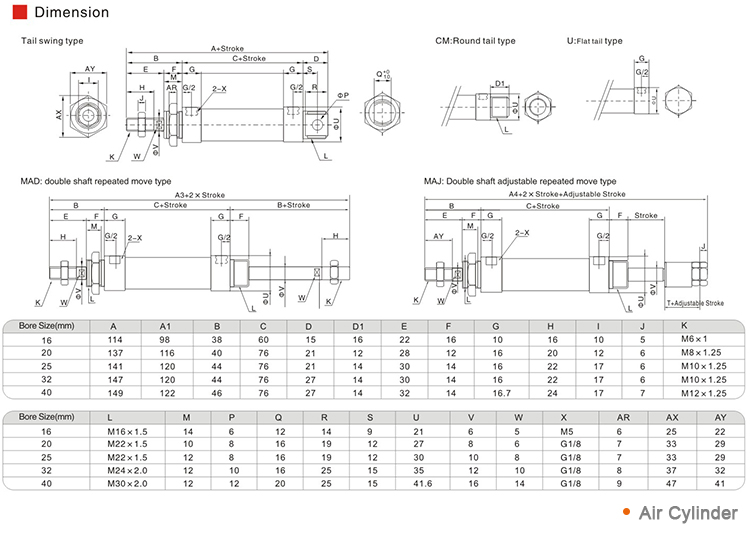

Specification
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
|
Acting type |
MSA/MTA |
single acting |
- |
|||||
MA/MAD/MAJ |
Double acting |
- |
||||||
MAR |
- |
Double acting |
||||||
MAC/MACD/MACJ |
Double acting with cushion |
|||||||
Fluid |
Air(to be filtered by 40um filter element) |
|||||||
Operating pressure |
Double acting |
0.15~1.0MPa(22~145psi)(1.5~10.0bar) |
||||||
Single acting |
0.2~1.0MPa(28~145psi)(2.0~10.0bar) |
|||||||
Proof pressure |
1.5MPa(215psi) (15bar) |
|||||||
Temperature ℃ |
-20~70 |
|||||||
speed range mm/s |
Double acting : 30~800Single acting : 50~800 |
|||||||
Stroke tolerance |
0~150+10 150 |
|||||||
cushion type |
MAC/MACD/MACJ Series: Variable cushion;Other series: Bumper |
|||||||
Port size |
M5×0.8 |
1/8" |
1/4" |
|||||
lnstallation and application
1.when load changes in the work, the cylinder with abundant outputcapacity shall be selected.
2.Relative cylinder with high temperature resistance or corrosionresistance shall be chosen under the condition of high temperatureor corrosion.
3.Necessary protection measure shall be taken in the environmentwith higher humidity, much dust or water drops, oil dust and
welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder isconnected with pipeline to prevent the entrance of particles
into the cylinder.
5.The medium used by cylinder shall be filtered to 40um or below.6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before
application.Prior to run, buffer shall be turned to the minimum andgradually released to avoid the damage on cylinder caused byexcessive impact.
8.To avoid side load, otherwise, piston rod will be bent and deformedand damage the thread at the end of the rod.Single-acting typecan not be added in return.
9. If the cylinder is dismantled and stored for a long time, please toconduct anti-rust treatment to the surface.Anti-dust caps shallbe added in air inlet and outlet ports.The front and back cover cannot be dismantled, which shall be especially noticed.
FAQ
Q1. Can I directly replace your cylinders with SMC/Festo/Parker cylinders?
A1. We have the exact same models as SMC FESTO Parker, conforming to international standards (ISO6431, ISO15552, ISO6432), which can completely replace original SMC/Festo/Parker models.
Q2. Are your cylinder mounting dimensions the same as the original?
A2. Our mounting holes are exactly the same as the original. We can send you drawings for confirmation, and also confirm your thread specifications (PT/NPT/G/BSPP).
Q3. If my original brand and model are no longer available, can you provide replacement recommendations based on the old model?
A3. You can upload a photo or nameplate of your old cylinder, and we can provide a replacement model.
Q4. What material are your cylinder seals made of? What are the applicable operating temperatures?
A4. Our seals are made of NBR (general purpose), Viton (high temperature/chemical corrosion resistant), or PU (wear resistant). We can also customize cylinders with special materials to meet your needs.
Q5. What is the cushioning method of the cylinder? Is it adjustable?
A5. Cylinder cushioning methods include rubber cushioning, air cushioning, and the position of the air cushioning adjustment valve, which is crucial for reducing equipment vibration.
Q6. Can I customize a special stroke length? How long is the delivery time?
A6. We can customize any length you want, and the customization time is usually 3-5 days.
Q7. Does the piston rod (PistonRod) have a surface treatment? How is its rust resistance?
A7. Our piston rods are hard chrome plated and made of stainless steel, offering strong wear resistance.
Q8. What is your warranty period? What happens if there is a leak?
A8. Our products typically come with a 12-18 month warranty. We provide a repair kit and videos on how to repair leaks.
Q9. Do you support small trial orders? Is a full carton minimum order required?
A9. No MOQ for stock items and small quantity sample support.
Q10. What is the shipping time? Is there an expedited channel for urgent repair orders?
A10. For small and urgent orders, we can ship within three days because we have a large inventory of stock.
Q11. Can you provide test reports that comply with RoHS/CE/ISO standards?
A11. Our products comply with RoHS/CE/ISO standards and we can provide certificates.
